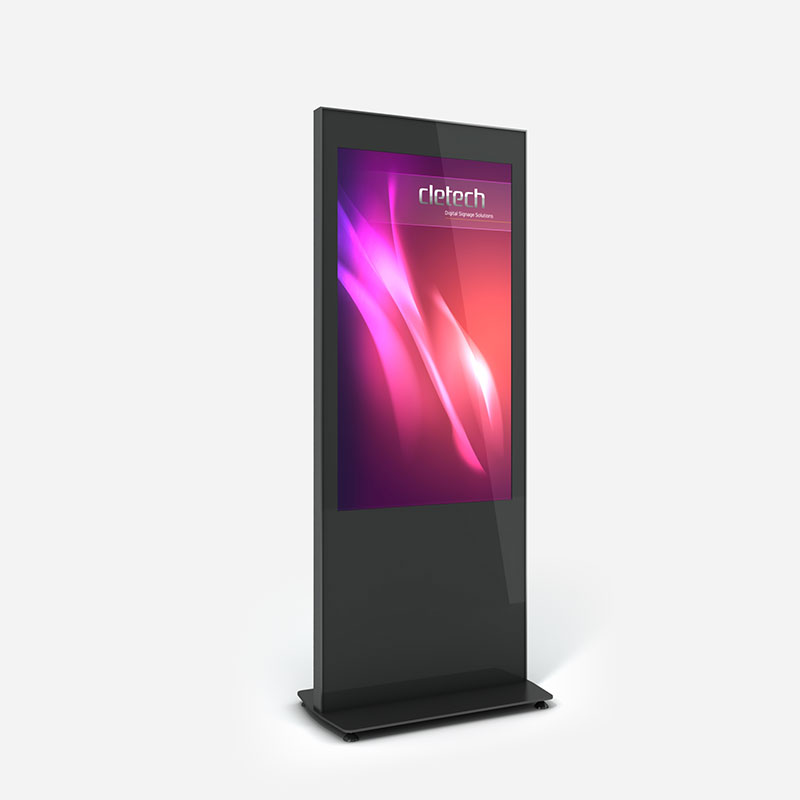

C01 Single Sided Digital Signage Indoor Totem Enclosure
Slim design totem enclosures for professional monitors.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Orientation | |
| Configuration | |
| Touch | This product is not touch-enabled, but it can be manufactured with touch functionality based on your project requirements. Please contact our sales team for more information. |
| Color Options The specified colors are standard. For requests involving different colors, please contact our sales team. | , , , |
Modern Indoor Digital Signage Redefined with Cletech C01

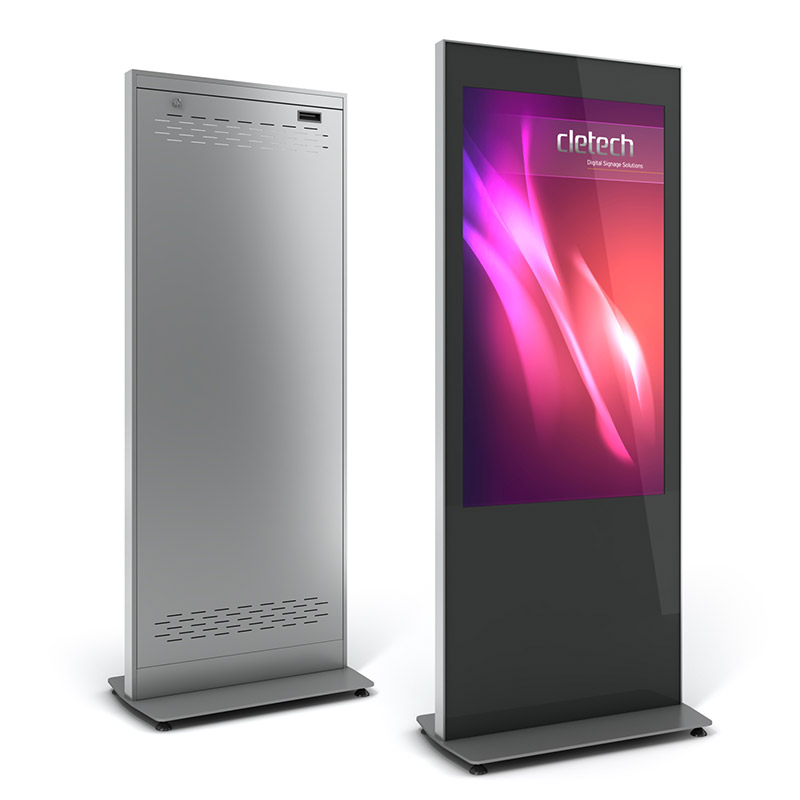

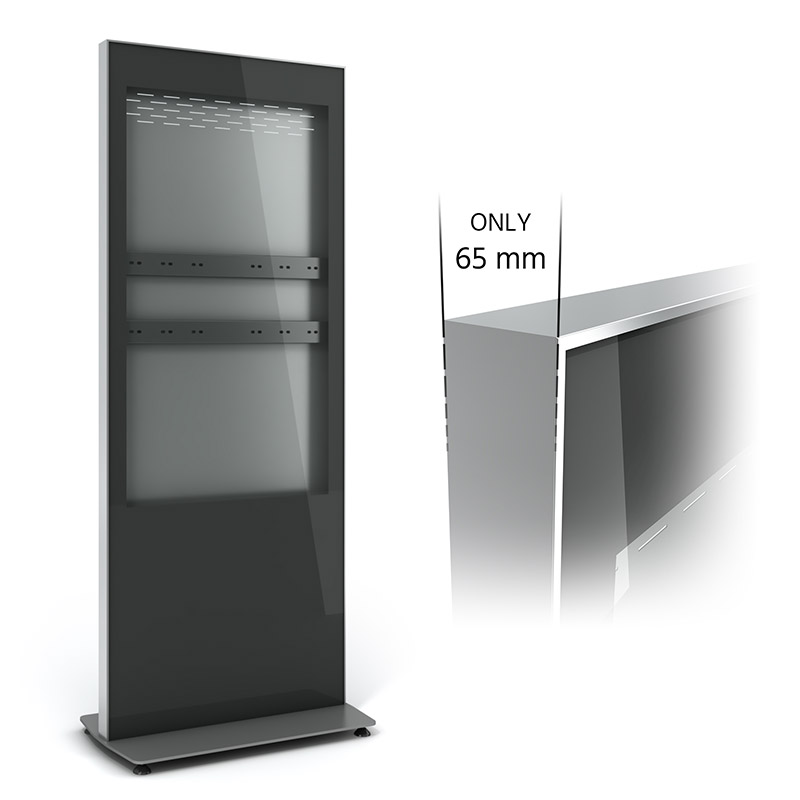

The Cletech C01 Single Sided Digital Signage Indoor Totem Enclosure is a sophisticated solution designed for high-traffic indoor environments. Engineered to support screens from 32” to 75”, it seamlessly accommodates professional signage monitors from most leading brands. With its ultra-slim 65 mm profile made from custom aluminum with internal air ducts, this totem enclosure delivers both elegance and functionality. The front face features a 4 mm ceramic-printed ultra-clear tempered glass, ensuring screen protection without compromising visibility.

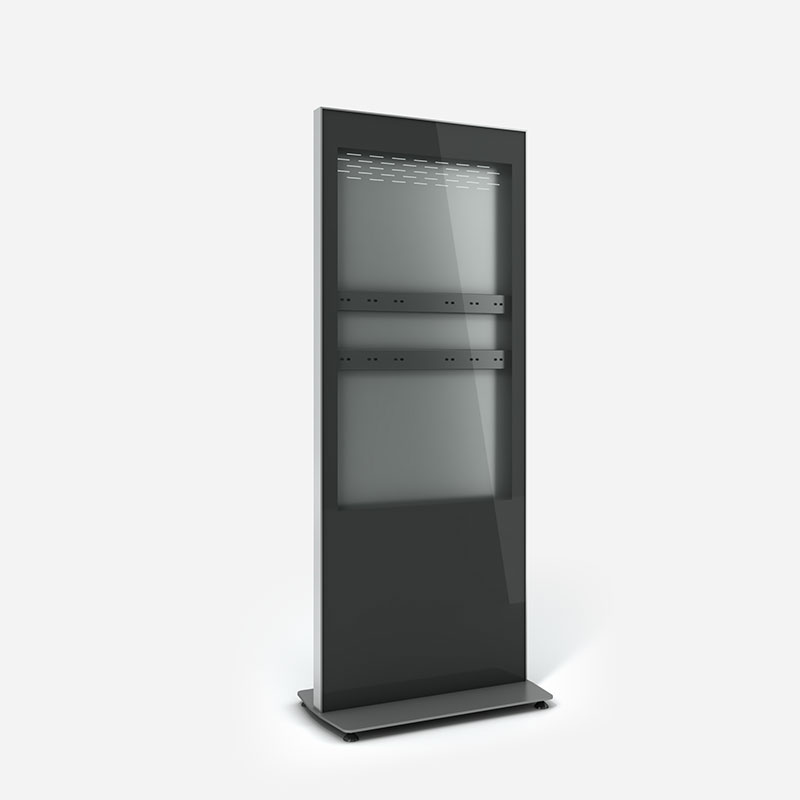

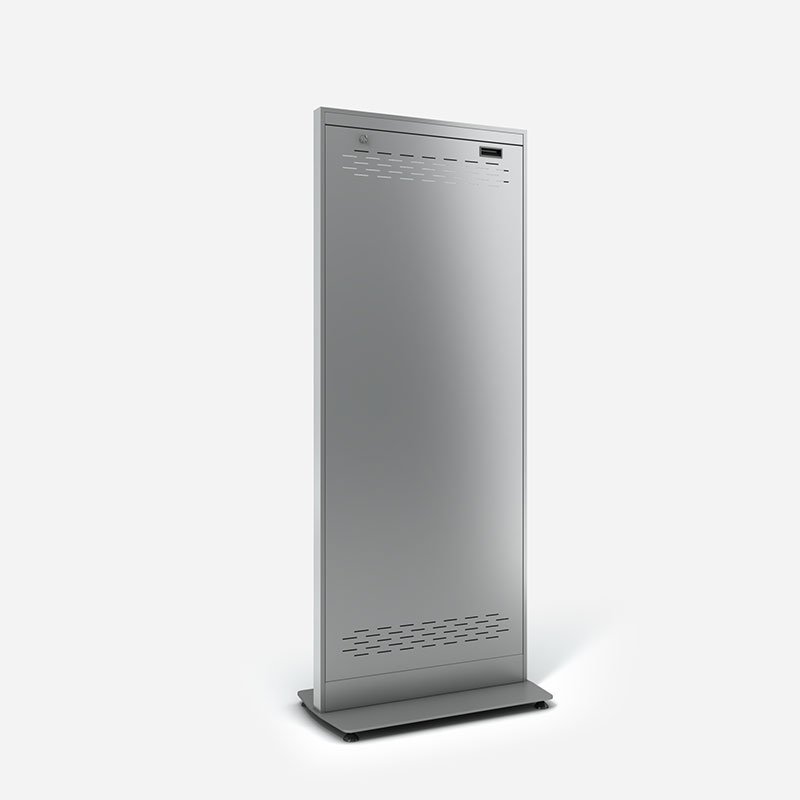

Designed for vertical mounting, the enclosure is equipped with VESA-standard mounting holes, offering easy compatibility with a variety of displays. Its ventilation system relies on strategically placed passive air inlets and outlets on the rear panel, maintaining optimal internal temperatures. The unit is coated with RAL-standard electrostatic powder paint, available in standard and optional custom colors for project-specific requirements. Whether in retail stores, corporate buildings, museums, or airports, Cletech C01 provides a premium display experience with robust protection.
Smart Design Meets Practical Installation and Maintenance

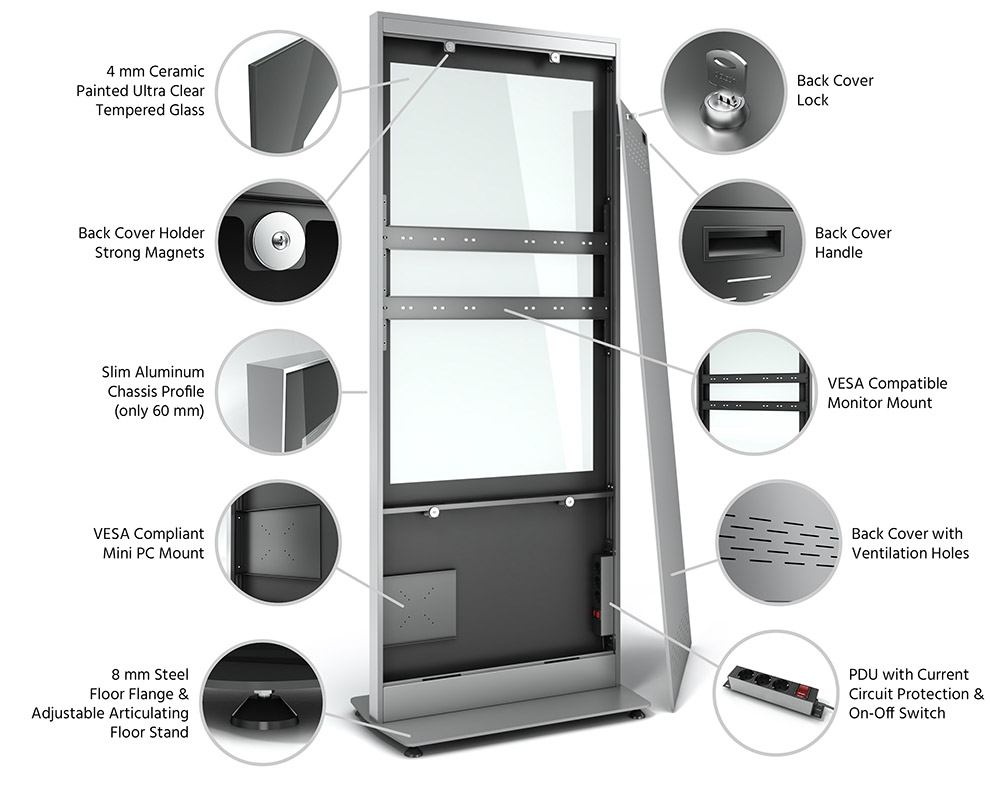

The Cletech C01 stands out not only for its stylish look but also for its intelligent structure. Its hidden cable management system ensures a clean and clutter-free appearance, while the fully enclosed chassis provides solid protection in public spaces. For added flexibility, the totem includes a VESA-compatible mount inside for a mini PC or media player, and comes standard with a 3-socket surge-protected, switchable PDU, supporting internal power management needs.
Mounting is a breeze thanks to hidden mounting points and a detachable ground flange with adjustable pivot feet for perfect alignment on any surface. For service operations, the rear cover can be fully removed, offering access via a top-lockable handle and strong magnetic fittings, enabling effortless maintenance. Optional PCAP touchscreen compatibility and touchscreen-ready glassless versions add versatility for interactive signage applications. From digital directories in office complexes to dynamic content displays in shopping centers and healthcare facilities, the C01 is a go-to enclosure for standalone screen solutions.
Cletech C01 Indoor Totem Enclosure
Sleek, strong, and tailored for modern digital signage.
Highlighted Features
Wide Screen Compatibility
Supports 32” to 75” displays with full VESA compliance.
Ultra-Clear Screen Protection
4 mm ceramic-printed tempered glass offers high durability and clarity.
Efficient Passive Cooling
Rear-panel vents allow for silent and effective natural airflow.
Tool-Free Maintenance Access
Strong magnetic rear panel with lockable handle ensures easy servicing.
Integrated Device Support
VESA-compatible bracket and built-in PDU for media players and power control.
Customizable Finishes
Choose from standard or project-specific RAL color options.
| Monitor | 32" | 43" | 49" | 50" | 55" | 65" | 75" |
| Mount Type |
Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange. |
||||||
| Base Feets | 4 x Articulated, height-adjustable feet | ||||||
| Base Wheels | Optional: 2 x swivel castors, 2 x swivel castors with brakes | ||||||
| Tempered Glass | 4 mm Extra Clear Ceramic Painted Tempered Glass | ||||||
| Touch Screen | Optional: PCAP Touch | ||||||
| Ventilation Fans | No | ||||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | Rear cover with locking mechanism | ||||||
| Body Materials | Aluminum Profile Chasis, Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Monitor | Enclosure | Package | |||||
| Display (inch) | Mountable Max. Monitor Dimension (mm) | Dimension (WxHxD) (mm) | Dimension with Flange (WxD) (mm) | Weight (kg) | Viewing Area (WxH) (mm) | Dimension (WxHxD) (mm) | Weight (kg) |
| 32" | 435x740x40 | 576x1839x65 | 596x1839x400 | 61 | 393x698 | 655x1930x120 | 64 |
| 43" | 570x980x40 | 710x1939x65 | 730x1939x450 | 76 | 529x941 | 790x2030x120 | 79 |
| 49" | 645x1115x40 | 784x1939x65 | 804x1939x450 | 84 | 604x1074 | 860x2030x120 | 87 |
| 50" | 655x1135x40 | 797x1939x65 | 816x1939x450 | 85 | 616x1096 | 870x2030x120 | 88 |
| 55" | 720x1250x40 | 860x2044x65 | 880x2044x500 | 100 | 680x1210 | 945x2130x120 | 103 |
| 65" | 845x1470x40 | 984x2144x65 | 1004x2144x550 | 121 | 804x1428 | 1065x2230x120 | 124 |
| 75" | 970x1690x40 | 1112x2244x65 | 1200x2244x600 | 156 | 928x1650 | 1200x2330x120 | 159 |
