Z03 Single Sided Digital Signage Indoor Kiosk Enclosure
Kiosk enclosure for interactive applications.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Orientation | |
| Configuration | |
| Product Family | |
| Touch | |
| Color Options The specified colors are standard. For requests involving different colors, please contact our sales team. | , , , |
Sleek Design Built for Interactive Environments

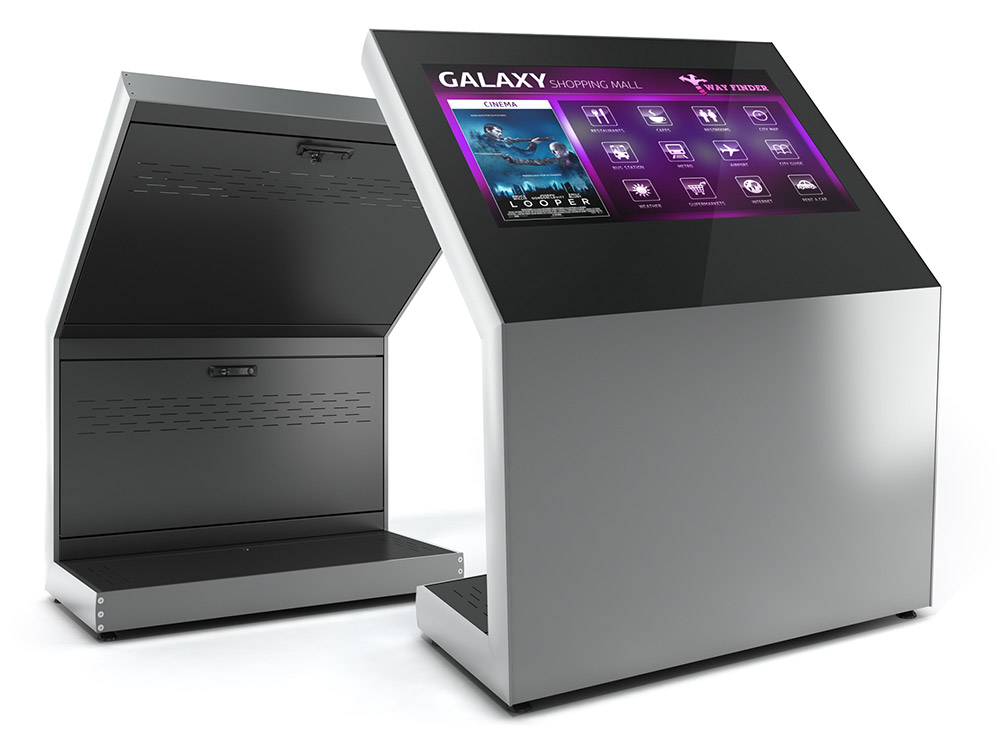

The Cletech Z03 Single Sided Indoor Kiosk Enclosure is crafted for modern indoor digital signage and interactive experiences. It supports 32" to 50" displays and is compatible with a wide range of professional monitors. The front-facing 4 mm PCAP glass provides precise multi-touch capability, while the durable aluminum body ensures both a slim form and long-term use. Perfect for hotel lobbies, corporate spaces, museums, and wayfinding setups.
Smart Infrastructure for Interactive Solutions
Behind its elegant exterior, the Cletech Z03 offers practical engineering tailored for high-performance indoor environments. It features VESA-compatible mounting points for both screens and internal media devices like a mini PC. The enclosure includes a built-in surge-protected, 3-socket PDU with switch, ensuring safe and organized power control. Hidden hinges and dual-locking panels allow quick and secure access for servicing. The passive ventilation system provides silent cooling via integrated air ducts on the back panel—ideal for public spaces where noise levels matter. Its electrostatically powder-coated body is available in standard RAL colors, with custom options for special projects. You can choose between adjustable fixed legs or optional caster wheels for effortless mobility. Whether it’s interactive wayfinding, self-check-in, promotional displays, or educational kiosks, the Z03 enclosure adapts to the needs of various sectors with reliability and visual appeal.
Interactive Elegance, Engineered to Perform
Designed for seamless indoor integration with professional-grade touch functionality.

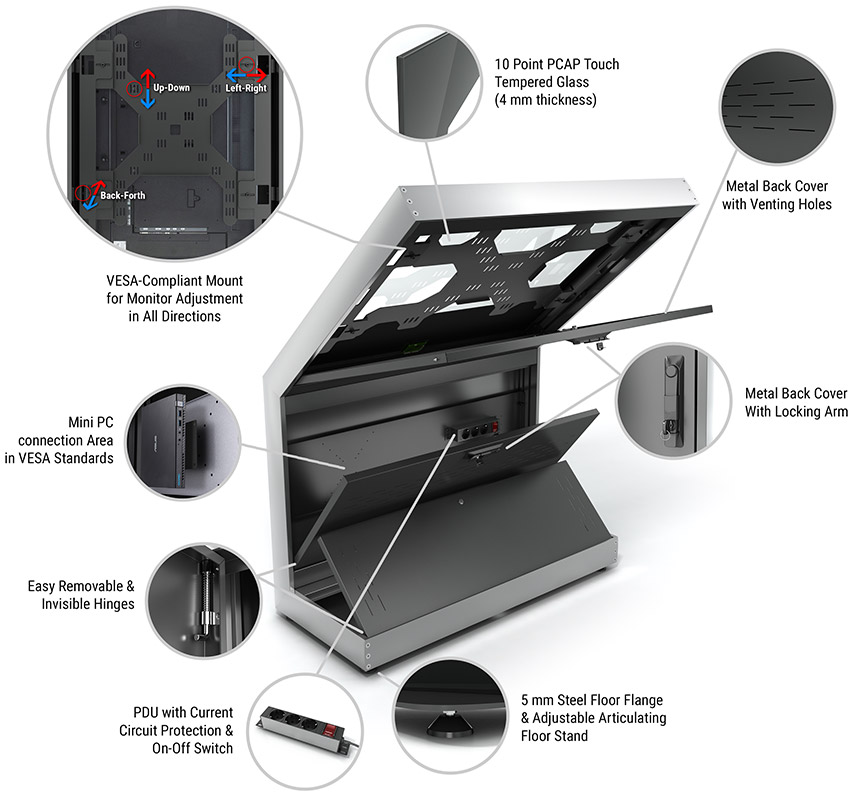

Key Features at a Glance
Broad Screen Compatibility
Supports professional displays between 32” and 50” for flexible deployment.
Ultra-Clear Touch Glass
4 mm tempered PCAP glass ensures responsive and accurate multi-touch control.
Passive Ventilation System
Rear air inlets and outlets enable silent and efficient airflow.

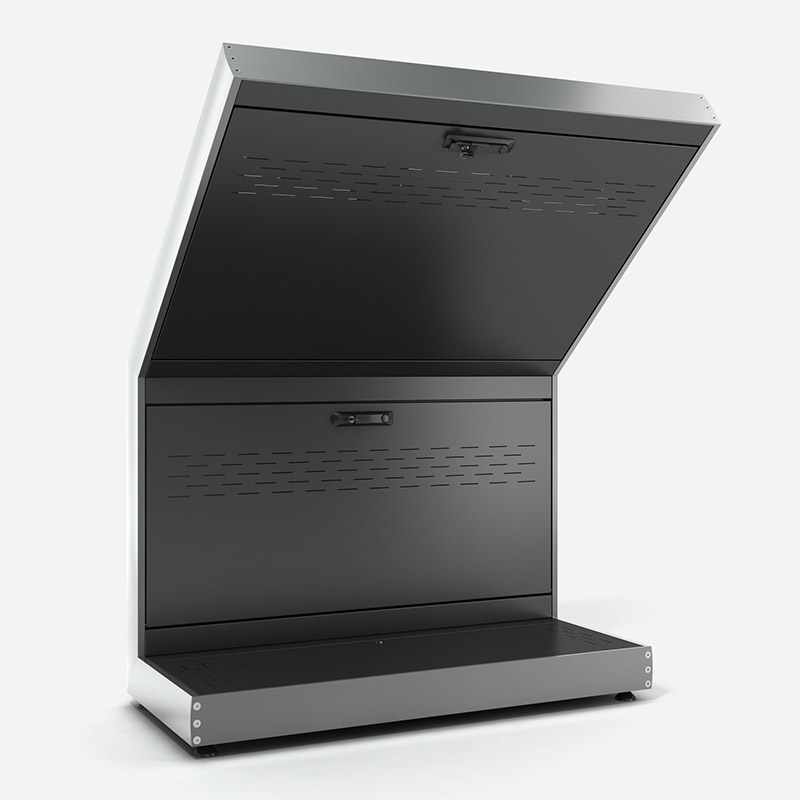

Secure & Easy Access
Lockable hinged rear covers make service and maintenance effortless.
Modular Mounting Options

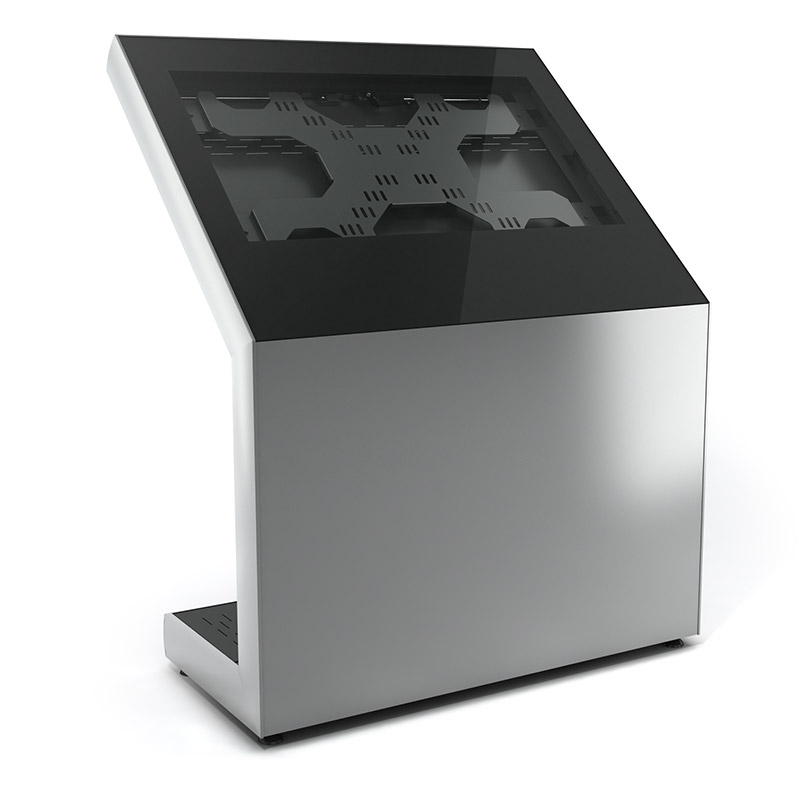

VESA-compatible with internal space for mini PC or media player integration.
True PCAP Touch Integration
Connects easily via USB to your display or media player, instantly enabling interactivity.

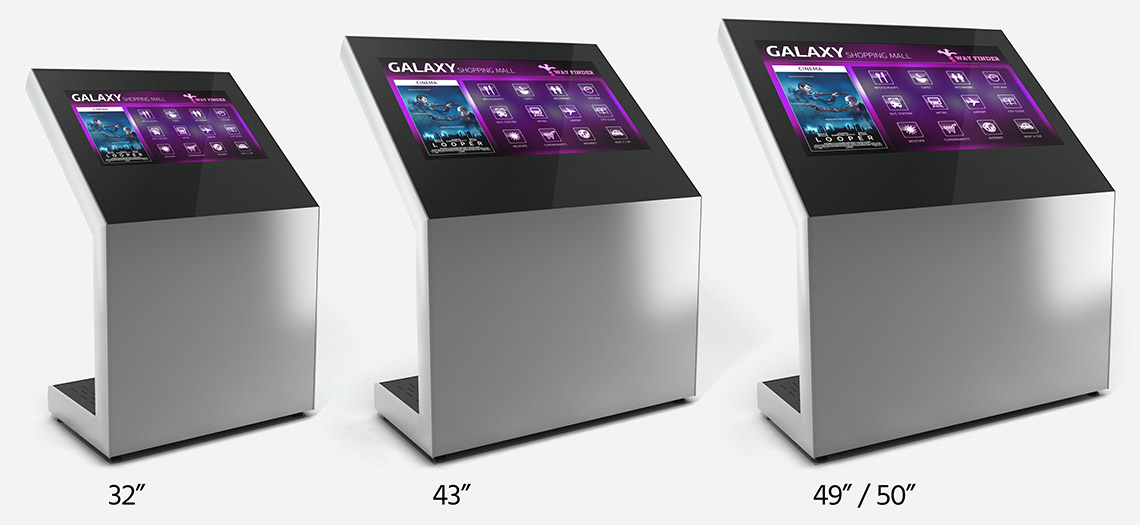

| Monitor | 32" | 43" | 49" | 50" |
| Mount Type |
Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange. |
|||
| Base Feets | 4 x Articulated, height-adjustable feet | |||
| Base Wheels | Optional: 2 x swivel castors, 2 x swivel castors with brakes | |||
| Tempered Glass | 4 mm Extra Clear Ceramic Painted Tempered Glass | |||
| Touch Screen | 40 Point PCAP Touch | |||
| Ventilation Fans | No | |||
| Power Control | 3-Outlet Surge-Protected Switched PDU | |||
| Lockable Cover(s) | Two-point lock mechanism per door | |||
| Body Materials | Aluminum Profile Chasis, Galvanized steel and carbon steel. | |||
| Coating | Electrostatic powder coating | |||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | |||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | |||
| Monitor | Enclosure | Package | |||||
| Display (inch) | Mountable Max. Monitor Dimension (mm) | Dimension (WxHxD) (mm) | Bottom Stand Dimension (WxD) (mm) | Weight (kg) | Viewing Area (WxH) (mm) | Dimension (WxHxD) (mm) | Weight (kg) |
| 32" | 435x740x55 | 878x1385x672 | 505 | 55 | 698x393 | 942x1565x672 | 60 |
| 43" | 570x980x55 | 1121x1385x872 | 505 | 58 | 941x529 | 1222x1565x872 | 63 |
| 49" | 645x1115x55 | 1121x1385x872 | 505 | 58 | 1074x604 | 1222x1565x872 | 63 |
| 50" | 655x1135x55 | 1400x1550x850 | 505 | 68 | 1096x616 | 1400x1550x850 | 72 |
| Title | Description | Size | Date added | Download |
|---|---|---|---|---|
| Cletech Z03 Indoor Kiosk Enclosure Datasheet | 0.96 MB | 04-07-2025 | Download | |
| Cletech Z03 Indoor Kiosk Enclosure Installation Guide | 418.03 KB | 04-07-2025 | Download | |
| Cletech Z03 32 inch Indoor Landscape Kiosk Enclosure Dimensions | 62.37 KB | 04-07-2025 | Download | |
| Cletech Z03 43 inch Indoor Landscape Kiosk Enclosure Dimensions | 115.03 KB | 04-07-2025 | Download | |
| Cletech Z03 49 inch Indoor Landscape Kiosk Enclosure Dimensions | 61.76 KB | 04-07-2025 | Download | |
| Cletech Z03 50 inch Indoor Landscape Kiosk Enclosure Dimensions | 77.36 KB | 04-07-2025 | Download |
