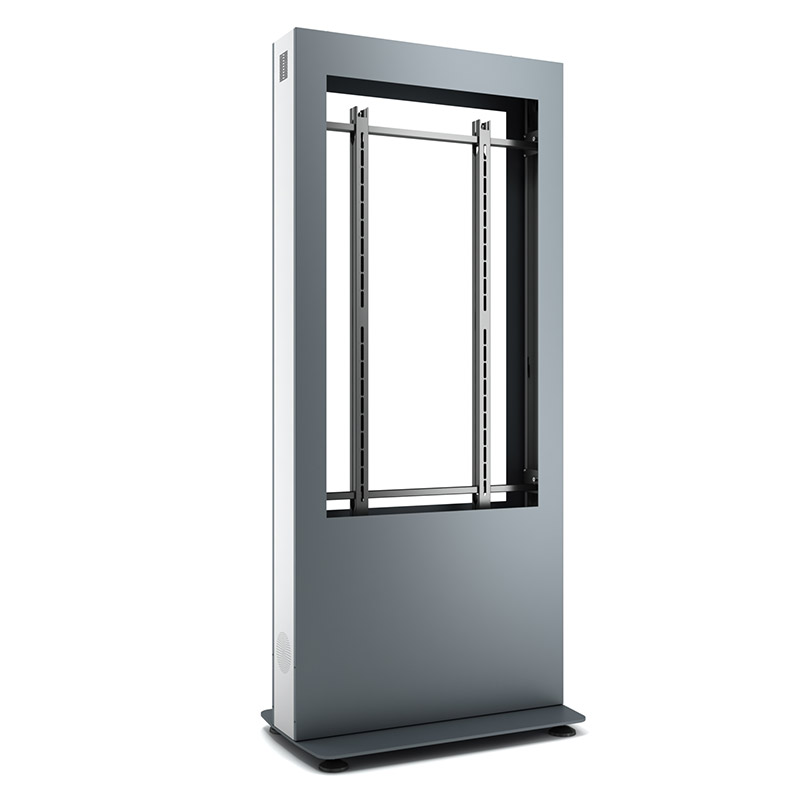

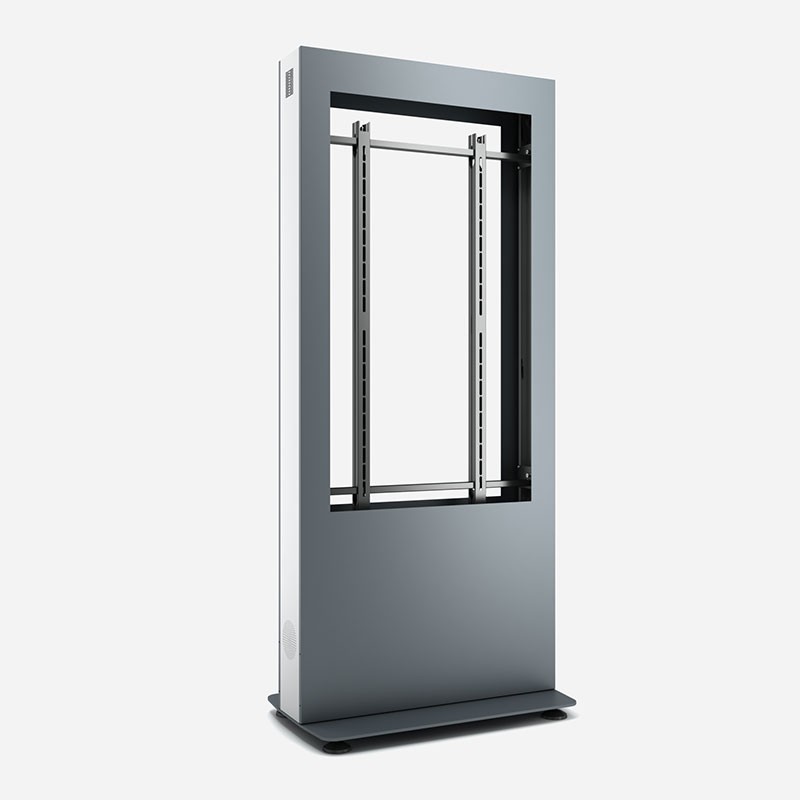

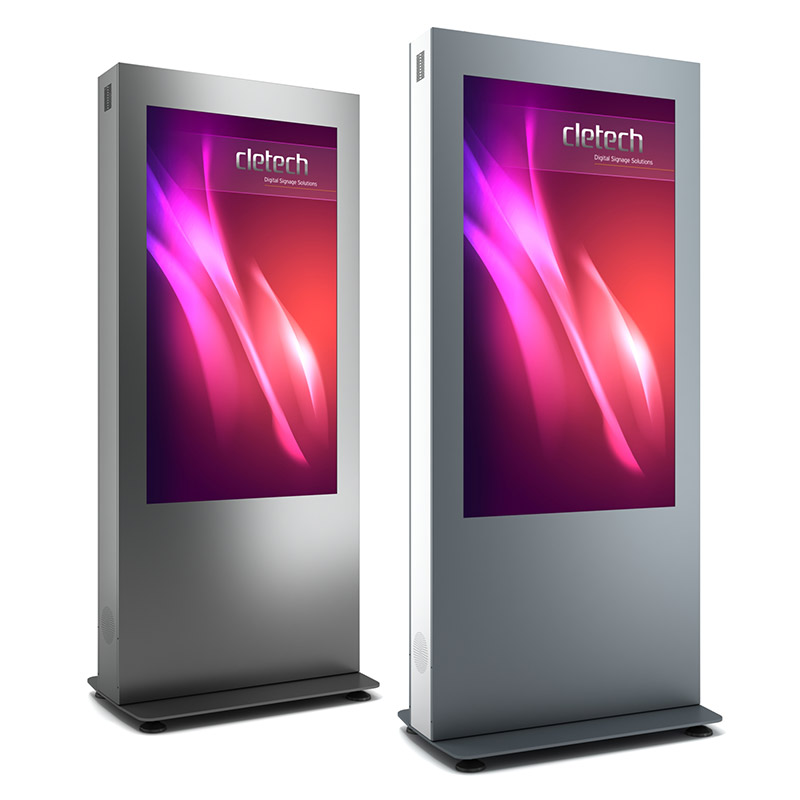

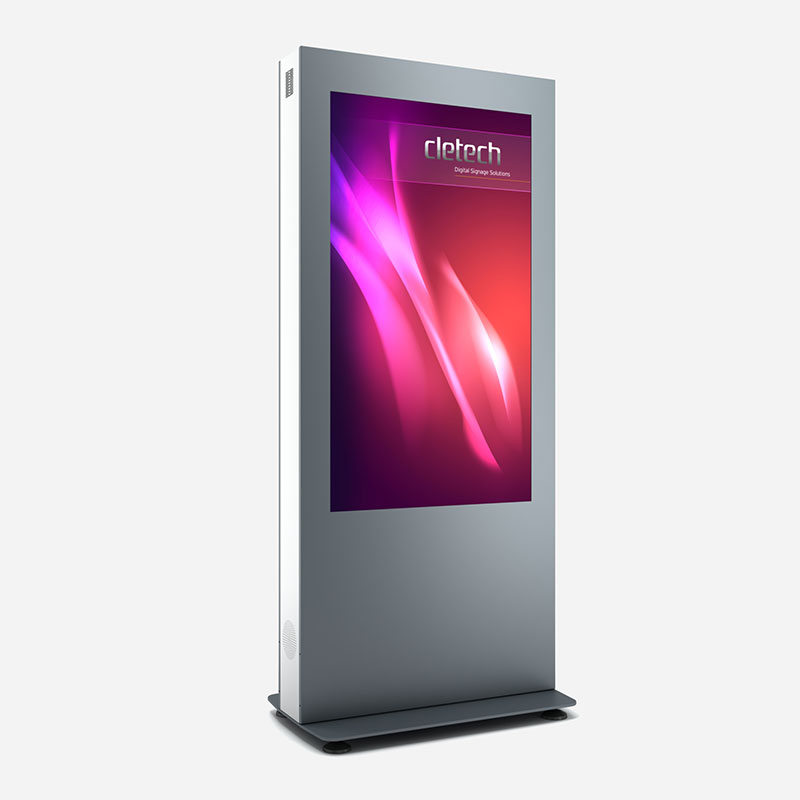

B04 Double Sided Digital Signage Indoor Totem Enclosure
Entry-level totem enclosure for professional monitors.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Configuration | |
| Orientation | |
| Product Family | |
| Touch | , This product is not touch-enabled, but it can be manufactured with touch functionality based on your project requirements. Please contact our sales team for more information. |
| Color Options The specified colors are standard. For requests involving different colors, please contact our sales team. | , , , |
A Modern Solution for Dynamic Indoor Digital Signage
The Cletech B04 Double Sided Digital Signage Indoor Totem Enclosure is engineered to meet the growing demand for immersive and professional digital displays. Compatible with a wide range of 32" to 75" professional signage monitors from various brands, this sleek and versatile enclosure supports both non-touch and built-in touch screen monitors thanks to its glassless design. Ideal for high-traffic indoor environments like shopping malls, retail stores, airports, hotel lobbies, museums, and corporate spaces, the B04 model is built for standalone usage while offering outstanding visual clarity and robust protection. Its dual-sided design enables simultaneous display on both sides, maximizing engagement and communication. With full monitor compatibility, minimal visible hardware, and concealed cable management, it ensures a clean and elegant installation that blends seamlessly into any modern setting.
Thoughtfully Designed for Performance, Security, and Service

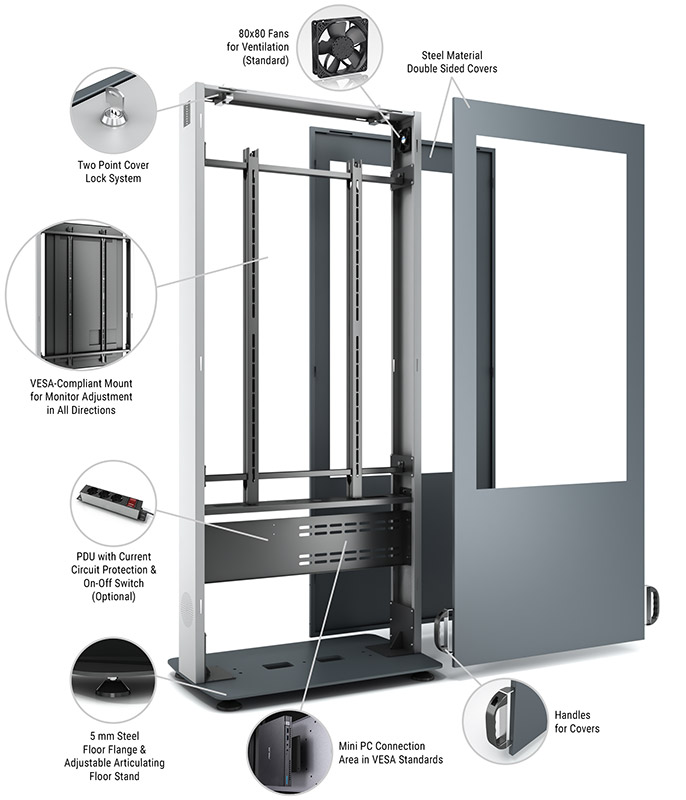

Beyond aesthetics, the Cletech B04 Totem Enclosure is crafted with functionality and serviceability in mind. The fully enclosed galvanized steel body offers durability, while the electrostatic powder-coated finish — available in a range of RAL colors — adds a refined look. Designed for easy maintenance, it features removable double-sided access panels with secure two-point locks, allowing swift servicing regardless of placement. The integrated ventilation system includes bottom air intakes and top-mounted fans for efficient airflow, maintaining internal temperature stability. Compatible with VESA-standard monitor mounts, it also features a dedicated section for mounting a mini PC. Optionally, users can add a 3-socket, surge-protected PDU with a switch for controlled power distribution. Whether for promotional content, wayfinding, or informational display, this unit delivers unmatched adaptability and long-term reliability.
Smart. Sleek. Secure.
Double-sided indoor totem enclosure built for high-impact signage and streamlined performance.
Key Features That Set Cletech B04 Apart
Wide Monitor Compatibility
Supports 32" to 75" professional signage monitors from leading brands.
Double-Sided Display Support
Dual-sided vertical design allows for high visibility and content delivery on both sides.
Robust, Fully Enclosed Steel Body
Galvanized steel construction with powder-coated finish for lasting durability and a polished look.
Easy Dual-Side Maintenance
Removable panels with dual-point locks offer quick access for maintenance from either side.
Efficient Airflow System
Lower vents and top-mounted fans ensure continuous cooling and internal temperature control.
Optional Surge-Protected PDU
Available with a 3-socket power distribution unit featuring surge protection and on/off switch.
| Monitor | 32" | 43" | 49" | 50" | 55" | 65" | 75" |
| Mount Type |
Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange. |
||||||
| Base Feets | 4 x Articulated, height-adjustable feet | ||||||
| Base Wheels | Optional: 2 x swivel castors, 2 x swivel castors with brakes | ||||||
| Tempered Glass | Optional: 5 mm Extra Clear Tempered Glass | ||||||
| Touch Screen | Optional: PCAP Touch | ||||||
| Ventilation Fans | 2 x Exhaust Fans (80x80 mm) | ||||||
| Power Control | Optional: 3-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | 2 x top-mounted locks securing both covers | ||||||
| Body Materials | Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Monitor | Enclosure | Package | |||||
| Display (inch) | Mountable Max. Monitor Dimension (mm) | Dimension (WxHxD) (mm) | Dimension with Flange (WxD) (mm) | Weight (kg) | Viewing Area (WxH) (mm) | Dimension (WxHxD) (mm) | Weight (kg) |
| 32" | 435x740x70 | 579x1877x180 | 579x1877x450 | 52 | 393x698 | 1950x640x230 | 56 |
| 43" | 570x980x70 | 715x1977x180 | 715x1977x500 | 62 | 529x941 | 2050x760x230 | 66 |
| 49" | 645x1115x70 | 790x1977x180 | 790x1977x500 | 64 | 604x1074 | 2050x840x230 | 70 |
| 50" | 655x1135x70 | 796x1977x180 | 796x1977x500 | 64 | 616x1096 | 2050x840x230 | 70 |
| 55" | 720x1250x70 | 860x1977x180 | 860x1977x500 | 68 | 680x1210 | 2050x900x230 | 72 |
| 65" | 845x1470x70 | 983x2177x180 | 983x2177x550 | 73 | 804x1428 | 2250x1040x230 | 78 |
| 75" | 970x1690x70 | 1112x2225x180 | 1112x2225x600 | 82 | 928x1650 | 2250x1160x230 | 87 |
